Spacecase 520 Series
520 Modular Series

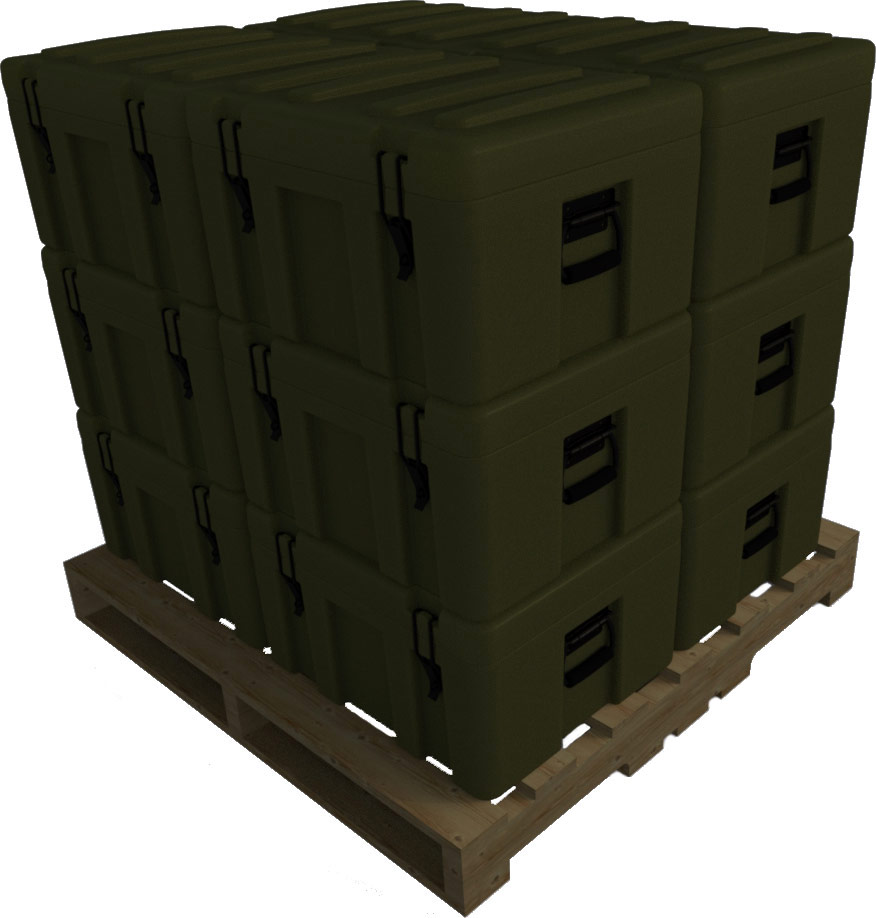

- Safe, secure inter-stacking
- Modular, interoperable and standardised unit loads
- Compatible with EURO, ISO, Asian and Northern American pallets
- Reusable, quarantine safe & weatherproof
- Designed for road, rail, air and sea airport
2 Steps to Ensuring Maximum Equipment Protection
1. Stack with Authority
Choose your required case size (or contact us, and we can help choose the right case for your application)
2. Pack with Confidence
Either choose from an existing preconfigured design or contact us and we can design a custom case solution to meet your needs. We have over 10,000 solutions on file to draw on.
Pelican-Trimcast has been manufacturing high-performance custom case solutions, specially designed to meet the demanding requirements of the Military, Industrial, Commercial and Consumer markets for over 40 years. The solutions can include shock mitigating systems, such as custom foam inserts, ensuring maximum equipment protection during transport, storage and operation, even in the harshest conditions.
Remember, we’re with you every step of the way to provide expert advice and maximise the level of protection for your equipment.
Standardised Unit Loads
| Product | Max Cases Per Layer | Total Layers on Pallet | Max Cases Per Cube/Pallet* | Internal Volume Per Layer (m3) | Weight Per Layer (kg) | Cube Dims (mm) | Cube Ext Vol (m3) | Cube Int Vol (m3) | Weight Per Cube (kg) |
|---|---|---|---|---|---|---|---|---|---|
| BG052045025 | 4 | 5 | 20 | 0.12 | 24 | 1040 x 1040 x 1125 | 1.21 | 0.62 | 120 |
| BG052045031 | 4 | 4 | 16 | 0.17 | 24.8 | 1040 x 1040 x 1240 | 1.34 | 0.688 | 99.2 |
| BG052045045 | 4 | 2 | 8 | 0.28 | 32 | 1040 x 1040 x 900 | 0.97 | 0.56 | 64 |
| BG104045025 | 2 | 5 | 10 | 0.13 | 24 | 1040 x 1040 x 1125 | 1.21 | 0.65 | 120 |
| BG104045031 | 2 | 4 | 8 | 0.18 | 26 | 1040 x 1040 x 1240 | 1.34 | 0.736 | 104 |
| BG104045045 | 2 | 2 | 4 | 0.29 | 29 | 1040 x 1040 x 900 | 0.97 | 0.588 | 58 |
| BG104090031 | 1 | 4 | 4 | 0.19 | 16.5 | 1040 x 1040 x 1125 | 1.21 | 0.772 | 66 |
| BG104090045 | 1 | 2 | 2 | 0.32 | 18 | 1040 x 1040 x 1240 | 1.34 | 0.632 | 36 |
Max Cases Per Layer
4
Total Layers on Pallet
5
Max Cases Per Cube/Pallet*
20
Internal Volume Per Layer (m3)
0.12
Weight Per Layer (kg)
24
Cube Dims (mm)
1040 x 1040 x 1125
Cube Ext Vol (m3)
1.21
Cube Int Vol (m3)
0.62
Weight Per Cube (kg)
120
Max Cases Per Layer
4
Total Layers on Pallet
4
Max Cases Per Cube/Pallet*
16
Internal Volume Per Layer (m3)
0.17
Weight Per Layer (kg)
24.8
Cube Dims (mm)
1040 x 1040 x 1240
Cube Ext Vol (m3)
1.34
Cube Int Vol (m3)
0.688
Weight Per Cube (kg)
99.2
Max Cases Per Layer
4
Total Layers on Pallet
2
Max Cases Per Cube/Pallet*
8
Internal Volume Per Layer (m3)
0.28
Weight Per Layer (kg)
32
Cube Dims (mm)
1040 x 1040 x 900
Cube Ext Vol (m3)
0.97
Cube Int Vol (m3)
0.56
Weight Per Cube (kg)
64
Max Cases Per Layer
2
Total Layers on Pallet
5
Max Cases Per Cube/Pallet*
10
Internal Volume Per Layer (m3)
0.13
Weight Per Layer (kg)
24
Cube Dims (mm)
1040 x 1040 x 1125
Cube Ext Vol (m3)
1.21
Cube Int Vol (m3)
0.65
Weight Per Cube (kg)
120
Max Cases Per Layer
2
Total Layers on Pallet
4
Max Cases Per Cube/Pallet*
8
Internal Volume Per Layer (m3)
0.18
Weight Per Layer (kg)
26
Cube Dims (mm)
1040 x 1040 x 1240
Cube Ext Vol (m3)
1.34
Cube Int Vol (m3)
0.736
Weight Per Cube (kg)
104
Max Cases Per Layer
2
Total Layers on Pallet
2
Max Cases Per Cube/Pallet*
4
Internal Volume Per Layer (m3)
0.29
Weight Per Layer (kg)
29
Cube Dims (mm)
1040 x 1040 x 900
Cube Ext Vol (m3)
0.97
Cube Int Vol (m3)
0.588
Weight Per Cube (kg)
58
Max Cases Per Layer
1
Total Layers on Pallet
4
Max Cases Per Cube/Pallet*
4
Internal Volume Per Layer (m3)
0.19
Weight Per Layer (kg)
16.5
Cube Dims (mm)
1040 x 1040 x 1125
Cube Ext Vol (m3)
1.21
Cube Int Vol (m3)
0.772
Weight Per Cube (kg)
66
Max Cases Per Layer
1
Total Layers on Pallet
2
Max Cases Per Cube/Pallet*
2
Internal Volume Per Layer (m3)
0.32
Weight Per Layer (kg)
18
Cube Dims (mm)
1040 x 1040 x 1240
Cube Ext Vol (m3)
1.34
Cube Int Vol (m3)
0.632
Weight Per Cube (kg)
36
* Standard North American, Europe and Asia Pallet Size: 1067 x 1067mm
Pack with Confidence
| Part # | Description | NSN |
|---|---|---|
| BS052045025IMAX04 | IMAXEON STELLANT INJECTOR HEAD | - |
| BS052045025C13005 | C130 EDCU | - |
| BS052045025COM72 | LAPTOP | - |
| BS052045031AEW05 | SU2000 TRANSFORMER | - |
| BS052045031AEW06 | LITEFUZE CONVERTING BOX 3000 | - |
| BS052045031BB03 | DUAL BATTERY BOX | - |
| BS052045031COM09 | PERSONNEL TRACKER (PTRAKA) | - |
| BS052045031COM03 | IC201 INTERCOM AND POWER SUPPLY | - |
| BS052045045C27J02 | C27J BATTERY BOX | - |
| BS052045045ENG29 | FLASHPOINT TESTER KIT | - |
| BBS052045045ENG30 | DESSICATOR | - |
| BS052045045MB07 | GWAGON TURBOCHARGER UNIT | 8145-66-159-2829 |
| BS052045045MIL02 | MILSPEC ALTERNATOR | - |
| BS052045045SCS02 | LAPTOP & TABLET CASE | - |
| BS104045025ENG49 | VEHICLE TOOLBOX | - |
| BS104045031M7774 | M777 INERT SHELL CASE | - |
| BS104045031MT01 | MAXTRAX (MKII) CASE | - |
| BBS104090031MON05 | SONY 40 MONITOR (KDL-40EX650) | - |
| BS104090031ORI03 | PUMP CASE (16 PACK) | - |
| BS104090045AEW03 | EMERGENCY SLIDE AEW STORAGE | - |
| BS150104031COM08 | 55 TOUCH SCREEN | - |
| BS150104031TV05 | 55IN TV SCREEN BRIEFING | - |
BS052045025IMAX04
Description
IMAXEON STELLANT INJECTOR HEAD
NSN
-
BS052045025C13005
Description
C130 EDCU
NSN
-
BS052045025COM72
Description
LAPTOP
NSN
-
BS052045031AEW05
Description
SU2000 TRANSFORMER
NSN
-
BS052045031AEW06
Description
LITEFUZE CONVERTING BOX 3000
NSN
-
BS052045031BB03
Description
DUAL BATTERY BOX
NSN
-
BS052045031COM09
Description
PERSONNEL TRACKER (PTRAKA)
NSN
-
BS052045031COM03
Description
IC201 INTERCOM AND POWER SUPPLY
NSN
-
BS052045045C27J02
Description
C27J BATTERY BOX
NSN
-
BS052045045ENG29
Description
FLASHPOINT TESTER KIT
NSN
-
BBS052045045ENG30
Description
DESSICATOR
NSN
-
BS052045045MB07
Description
GWAGON TURBOCHARGER UNIT
NSN
8145-66-159-2829
BS052045045MIL02
Description
MILSPEC ALTERNATOR
NSN
-
BS052045045SCS02
Description
LAPTOP & TABLET CASE
NSN
-
BS104045025ENG49
Description
VEHICLE TOOLBOX
NSN
-
BS104045031M7774
Description
M777 INERT SHELL CASE
NSN
-
BS104045031MT01
Description
MAXTRAX (MKII) CASE
NSN
-
BBS104090031MON05
Description
SONY 40 MONITOR (KDL-40EX650)
NSN
-
BS104090031ORI03
Description
PUMP CASE (16 PACK)
NSN
-
BS104090045AEW03
Description
EMERGENCY SLIDE AEW STORAGE
NSN
-
BS150104031COM08
Description
55 TOUCH SCREEN
NSN
-
BS150104031TV05
Description
55IN TV SCREEN BRIEFING
NSN
-
Don’t see what you need? Contact Us, we have over 5,000 NSN’s and more than 10,000 custom case solutions available
